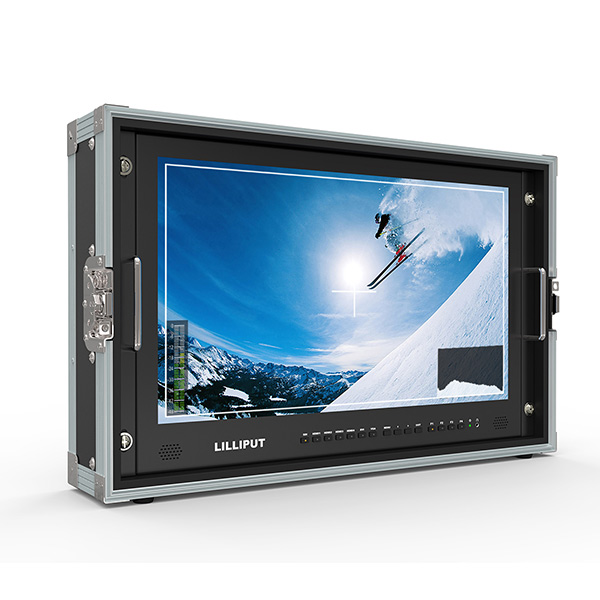

Liliput 24 inch 4K monitor Display Size 23.8″ / 60.5 cm Resolution 3840 x 2160 Touchscreen No Video I/O 2 x BNC (12G-SDI) Input 2 x BNC (12G-SDI) Loop Output 2 x BNC (3G-SDI) Input 2 x BNC (3G-SDI) Loop Output 3 x HDMI 1.4 Input 1 x HDMI 2.0 Input Power Consumption 61.5 W Display Panel Type IPS-Type LCD Display Size 23.8″ / 60.5 cm Resolution 3840 x 2160 Aspect Ratio 16:9 Viewing Angle Horizontal: 178° Vertical: 178° Touchscreen No Maximum Brightness 300 nits / cd/m2 Contrast Ratio 1000:1 Dot Pitch 0.1372 x 0.1372 mm Pixels Per Inch (ppi) 185 ppi Image Controls Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Image Flip, Picture-in-Picture, Underscan Video I/O 2 x BNC (12G-SDI) Input 2 x BNC (12G-SDI) Loop Output 2 x BNC (3G-SDI) Input 2 x BNC (3G-SDI) Loop Output 3 x HDMI 1.4 Input 1 x HDMI 2.0 Input Audio I/O 1 x 1/8″ / 3.5 mm Headphone Input Built-In Speaker 1 Power I/O 1 x XLR 4-Pin (15 VDC) Input Other I/O 1 x DE-15/DB-15 (Tally) Media/Memory Card Slot No Format Support Video Format HDMIRGB DCI 2K: 60/59.94/50 UHD 4K: 60/50/30/25/24 DCI 4K: 60/50/24 SDI (10-Bit 4:4:4/4:2:2) DCI 2K: 30/29.97/25/24/23.98 SDI (10/12-Bit 4:4:4 RGB) DCI 4K: 30/29.97/25/24/23.98 SDI (10-Bit 4:2:2) DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 Power DC Input Power 12 to 24 VDC Battery Type 1 x V-Mount Operating Current 4.1 A Power Consumption 61.5 W Environmental Operating Temperature 32 to 92°F / 0 to 60°C Storage Temperature -4 to 140°F / -20 to 60°C General Dimensions 22.8 x 14.8 x 1.8″ / 579 x 376 x 45 mm 26.2 x 16.4 x 6.8″ / 666 x 417 x 173 mm, Including Case Weight 18.96 lb / 8.6 kg 37.48 lb / 17 kg, Including Case
